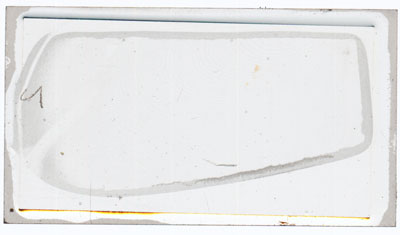

Thin Section





LV Image, 33X mag., 20 kV.





LV Image, 55X mag., 20 kV.






RAPSON GROUP GEOLOGY TEXT PANELS

Laboratory Analysis: Profilit GLASS Sample
and Final Text (shown at bottom)

Lab Data provided by: The Mineral Lab, 2700 Youngfield, Suite 105, Lakewood, CO 80215

Profilit GLASS X-Ray Fluorescence Map (XRF) Data

SITE INDEX Main Page; Geology Panel Site Page

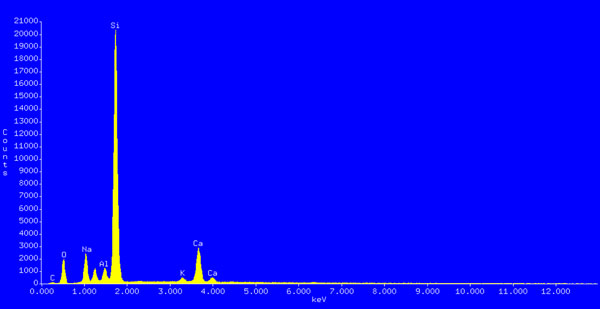

Profilit GLASS Energy-Dispersive X-Ray Spectroscopy (EDS) Data:

Accelerating Voltage: 25 KeV - Take Off Angle: 54.504∞ - Live Time: 120 seconds - Dead Time: 19.157



Approximate Wt.% - Semi-Quanitative Elemental Composition for EDS Spectra Shown Above

MgO 3.7, Al2O3 3.4, SiO2 71, SO3 0.3, K2O 0.8, CaO 10, Fe2O3 0.2, Na2O 9.5
